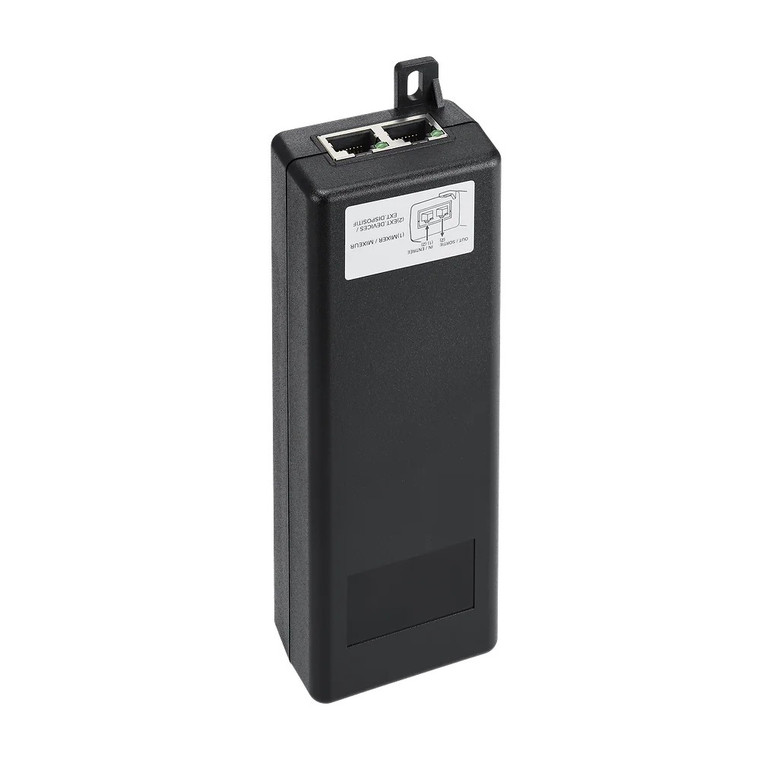

Audio-Technica ATLK-EXT30 A-T-Link Extender Power Supply for ESW-R4180LK

Audio-Technica ATLK-EXT30 A-T-Link Extender Power Supply for ESW-R4180LK

Audio-Technica
SKU:
ATLK-EXT30

Pricing available upon request

Current Stock:
Description

More compact yet more powerful than the ATLK-EXT25, the ATLK-EXT30 link extender delivers 30 W of power to ATSP-30LP and ATSP-30LK speakers and other Audio-Technica LINK devices, allowing more devices to be connected to a system while keeping costs low. Ideal for building small- to medium-sized systems.

The ATLK-EXT30 is equipped with two RJ45 ports and can connect into either a ring or daisy chain of connected components, allowing it to feed in both directions (forward and reverse).

The ATLK-EXT30 is compatible with Audio-Technica digital SmartMixers®, including the ATDM-1012, ATDM-1012DAN, and ATDM-0604a, ATCP control panels, and Audio-Technica LINK-compatible devices like the ATSP-30LP and ATSP-30LK speakers, ATND1061LK ceiling array microphone, and ESW-R4180LK receiver.

Key Features

  • Supplies 30 W of power to extend cable runs for ATSP-30LP/ ATSP-30LK speakers and other Audio-Technica LINK devices
  • Two RJ45 ports enable use in both ring and daisy chain configurations
  • Smaller and more powerful than the ATLK-EXT25
  • Ideal for small- to medium-sized systems

Technical Specifications

  • I/O Connectors:
    • Audio-Technica LINK input terminal: DATA
    • Audio-Technica LINK output terminal: DATA + POWER SUPPLY
  • Power Supply: 100 to 240 VAC, 50/60 Hz
  • Power Consumption: 0.5 to 36 W (max.)
  • Operation temperature: 0℃ to 40℃ (32℉ to 104℉)
  • Operation Humidity Range: 25 to 85％
  • Dimensions: 55.0 mm (2.2”) × 36.5 mm (1.4”) × 173.5 mm (6.8”) (including protrusions) (W x D x H)
  • Net Weight: 180 g (6.3 oz)
Additional Information
Product Type:
Microphone System
