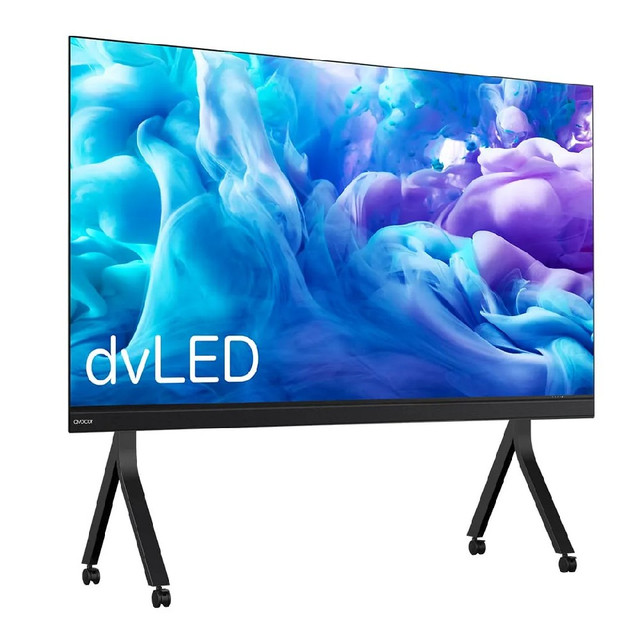

Avocor AVX-1380, X Series, 138" Full HD 1.58mm Pixel Pitch All-in-One dvLED Video Wall Display with Stand

Avocor AVX-1380, X Series, 138" Full HD 1.58mm Pixel Pitch All-in-One dvLED Video Wall Display with Stand

Avocor
SKU:
AVX-1380+STND

Pricing available upon request

Limited 3-Year Manufacturer Warranty
Current Stock:
Description

Experience a large-format, easy-to-deploy video screen with the Avocor AVX-1380 138" Full HD 1.58mm Pixel Pitch All-in-One dvLED Video Wall Display. The AVX-1380 includes everything you need to create a seamless, wall mounted, 10 x 6', 500 nits bright, dynamic visual presentation for corporate, educational, or entertainment settings.

Built-in Connectivity

This display is designed with multiple functionalities including wireless screen sharing, digital signage, and multiple inputs, reducing the need for external devices and ensuring high performance.

Seamless Integration

The X Series is designed for straightforward and quick setup. Each LED tile seamlessly integrates with the others to form a larger, cohesive and stunning visual display. This tiled approach allows for the creation of expansive and visually impressive screens without the complexity and labor associated with large scale installations.

Additional Details

  • Fuse: simplified remote technology management
  • Rise Vision: customizable digital signage
  • Montage: wireless screen sharing
  • Built-in dual front-facing 30-watt speakers
Key Features
  • 1080p Resolution 1.58mm Pixel Pitch
  • 10 x 6' Overall Size 16:9 Aspect
  • Single SMD dvLED Video Wall Display
  • RS-232 & LAN Control Capability
  • 3 x HDMI 2.0 Inputs
  • 6500:1 Contrast Ratio
  • 500 nits Brightness
  • Front Service Access
  • Built-In Dual Front-Facing 30W Speakers
  • Wall Mount Included

Technical Specifications

  • Display
    • Size: 138"
    • Panel Type: Direct View LED
    • Aspect Ratio: 16:9
    • Native Resolution: 1920 x 1080
    • Maximum Brightness: 500 nits / cd/m2
    • HDR Support: Yes
    • Contrast Ratio: 6500:1
    • Refresh Rate: 60 Hz
    • Viewing Angle (H x V): 170 x 170°
  • Connectivity
    • A/V Inputs:
      • 3x HDMI 2.0
      • 1x 1/8" / 3.5 mm (Analog Audio)
    • A/V Outputs: 1x TOSLINK Optical (Digital Audio)
    • HDCP Support: Yes: Version 2.2
    • Wireless: Wi-Fi
    • USB I/O:
      • 1x USB-C (Unspecified Version)
      • 1x USB-A 3.0 / 3.1/3.2 Gen 1
      • 1x USB-A 2.0
    • Ethernet I/O: 1x RJ45
    • Other I/O: 1x DE-9/DB-9 Serial (RS-232C) Control Input
  • Speaker
    • Built-In Speakers: Yes: 2x 30 W
  • Hardware
    • Smart TV: No
  • Electrical
    • Power Consumption:
      • Maximum: 1870.0 W
      • Typical: 640.0 W
      • Standby: < 0.5 W
    • Input Power: 100 to 240 VAC, 60 / 50 Hz
    • Power Adapter Type: Internal
  • General
    • Operating Conditions: 50 to 104°F / 10 to 40°C at 10 to 80% Humidity
    • Lighting Lifespan: 100000 Hours
    • Environmental Resistance: No
    • Bezel Thickness: Bezel Less
    • Duty Cycle: 24 Hours / 7 Days
    • Dimensions: 120.6 x 72.1 x 1.2" / 3064 x 1832 x 31 mm
    • Weight: 297.6 lb / 135 kg

What's Included

  • Avocor AVX-1380 138" Full HD 1.58mm Pixel Pitch All-in-One dvLED Video Wall Display
  • Remote Control
  • Removal Tool
  • Wall Mount
  • Power Cords
  • Spare LED Modules
  • Mobile Floor Stand
Additional Information
Resolution:
Full HD - 1080p
Screen Size:
138"
Product Type:
Display
