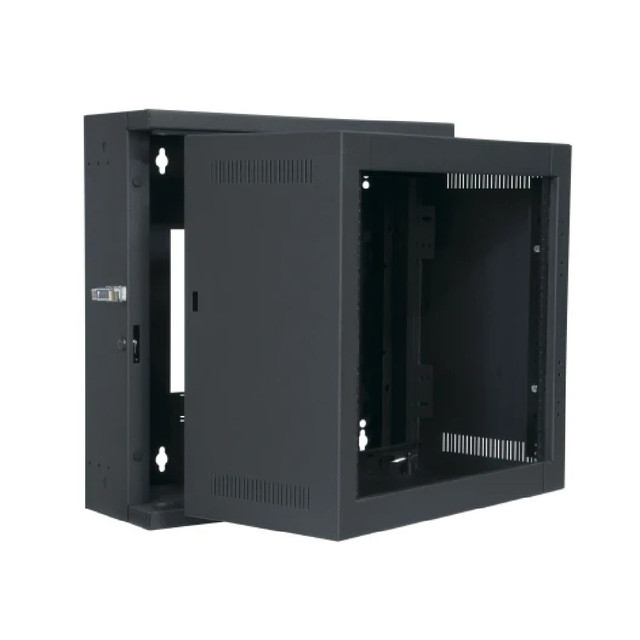

Legrand AV | Middle Atlantic | EWR Series Pivoting Wall Rack, 8 RU, 17 inches (With Front Door)

An economical solution for smaller systems, this pivoting, sectional wall cabinet provides unparalleled quality and is ideal for use in both secured and unsecured areas.

• 8RU and 17" Deep
• Fully welded construction for strength
• Patented Tool Free Quick-Mount™ system for center section mounting
• Center section swing is reversible, and can be both key-locked and padlocked
• Center section is keyed differently from optional front door for added security
• Optimized for passive thermal management
• Fully assembled with solid front door
• Standard front adjustable 10-32 threaded rackrail
• UL Listed in the US and Canada with a 150lbs. (68kg) weight capacity

Technical Specifications

• Dimensions & Measurements

  • Depth: 17 in (43.2 cm)
  • Height: 21 in (53.3 cm)
  • Product Weight: 63 lbs (28.6 kg)
  • Rack Units: 8 RU
  • Shipping Weight: 63 lbs (28.6 kg)
  • UL Load Capacity: 150 lbs (68 kg)
  • Usable Depth: 15 in (38.1 cm)
  • Usable Height: 14 in (35.6 cm)
  • Width: 23.38 in (59.4 cm)
• Characteristics & Features

  • Federal Ops Country of Origin: Mexico
  • Finish: Black Wrinkle Powder Coat
  • Front Door: Yes
  • Rack Rail Type: 10-32
  • TAA Compliant: Yes
  • UPC: 656747057267
• Certifications & Warranties

  • Certifications:

    • CSA Standard
    • TAA
    • UL Listed
