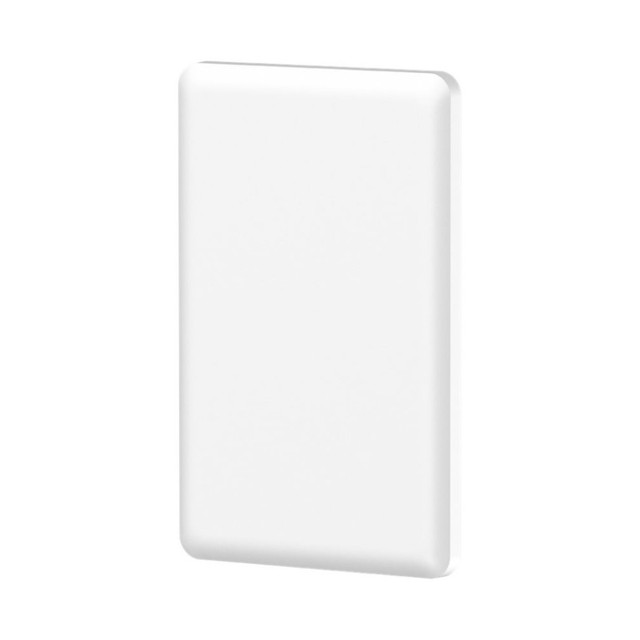

Verkada Outdoor Directional LTE Antenna for GC Series, N-Type

The Outdoor Directional LTE Antenna can improve signal strength on the GC31-E when pointed toward the correct cell tower. For optimal performance, mount the antenna high up on a pole for a clearer line of sight toward the cell tower.

Installation Guide (Click Here)

Technical Specifications

• Cable Length: 100cm / 39in
• Frequency Range:

  • 617 - 960 MHz
  • 1710 - 2170 MHz
  • 2300 - 2690 MHz
  • 3400 - 3800 MHz
• Weight: 1.4kg / 3.0lbs
• Peak Gain (Per Range):

  • 8.1 dBi
  • 8.2 dBi
  • 7.6 dBi
  • 7.2 dBi
• Dimensions:

  • Length: 279.4mm / 11in
  • Width: 279.4mm / 11in
  • Height: 139.7mm / 5.5in
• Polarization: -45° / +45°
• Operating Temperature Range: -30°C to 70°C / -22°F to 158°F
• Peak Beamwidth: 75°
• Mounting Options:

  • Wall or pole mounting
  • Pole straps (3 - 4"diameter)
  • #8 wall screws with drywall anchors included
• Connectors: 2x N-Type plugs
