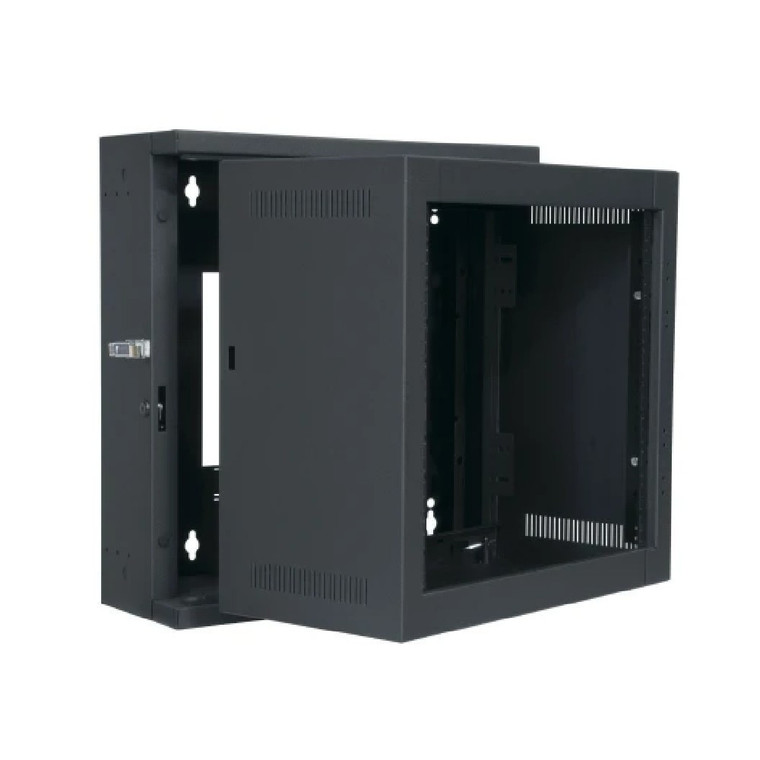

Legrand AV | Middle Atlantic | EWR Series Pivoting Wall Rack, 12 RU, 22 inches (No Front Door)

An economical solution for smaller systems, this pivoting, sectional wall cabinet provides unparalleled quality and is ideal for use in both secured and unsecured areas.

• 12RU and 22" Deep
• Fully welded construction for strength
• Patented Tool Free Quick-Mount™ system for center section mounting
• Center section swing is reversible, and can be both key-locked and padlocked
• Center section is keyed differently from optional front door for added security
• Optimized for passive thermal management
• Standard front adjustable 10-32 threaded rackrail
• UL Listed in the US and Canada with a 150lbs. (68kg) weight capacity

Technical Specifications

• Dimensions & Measurements

  • Depth: 22 in (55.9 cm)
  • Height: 28 in (71.1 cm)
  • Product Weight: 71 lbs (32.2 kg)
  • Rack Units: 12 RU
  • Shipping Weight: 67 lbs (30.4 kg)
  • UL Load Capacity: 150 lbs (68 kg)
  • Usable Depth: 20 in (50.8 cm)
  • Usable Height: 21 in (53.3 cm)
  • Width: 23.38 in (59.4 cm)
• Characteristics & Features

  • Federal Ops Country of Origin: Mexico
  • Finish: Black Wrinkle Powder Coat
  • Front Door: No
  • Rack Rail Type: 10-32
  • TAA Compliant: Yes
  • UPC: 656747057199
• Certifications & Warranties

  • Certifications:

    • CSA Standard
    • TAA
    • UL Listed
